How to Setup Bitaxe Gamma 601

SUMMARY

The Bitaxe Gamma 601 is a fully open-source, low-power Bitcoin ASIC miner designed for home users and hobbyists. Built around the same 5nm BM1370 chip used in the Antminer S21 Pro, it delivers about 1.1 TH/s at just 15W, making it one of the most energy-efficient and DIY-friendly mining devices available today.

Whether you’re interested in solo mining, contributing to decentralization, or just learning how ASIC miners work, the Bitaxe Gamma 601 offers a compact, quiet, and affordable entry point.

In this article, we’ll walk you through two key parts:

  1. What’s in the box — a quick hardware overview and unboxing checklist

  2. How to set it up — a step-by-step guide to get your miner online and mining in minutes

Let’s get started.

Unboxing and What’s Inside

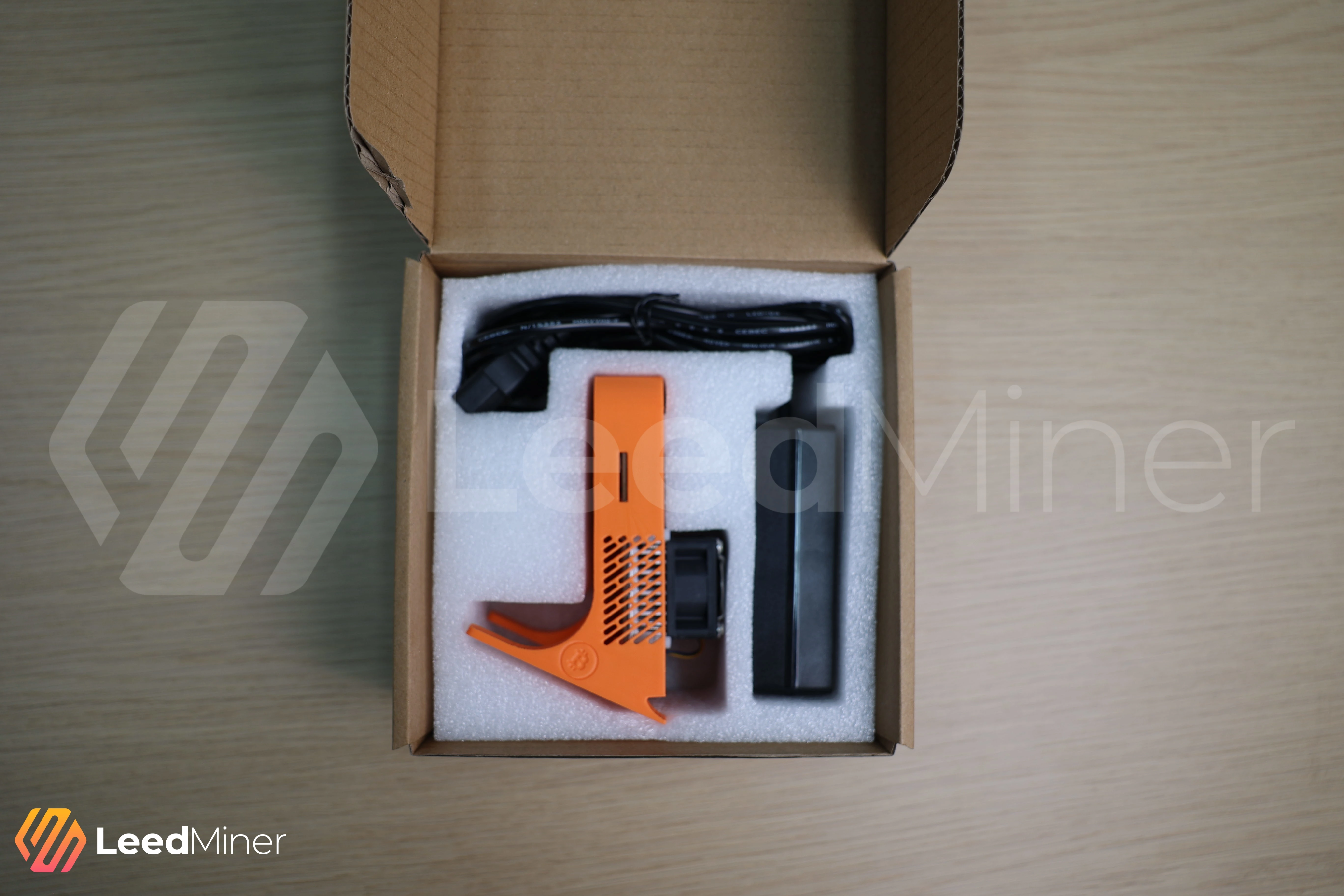

When you receive your Bitaxe Gamma 601, the first thing to do is unbox the package and check that all the components are included and in good condition.

unbox the package Bitaxe Gamma 601

Inside the box, you should find:

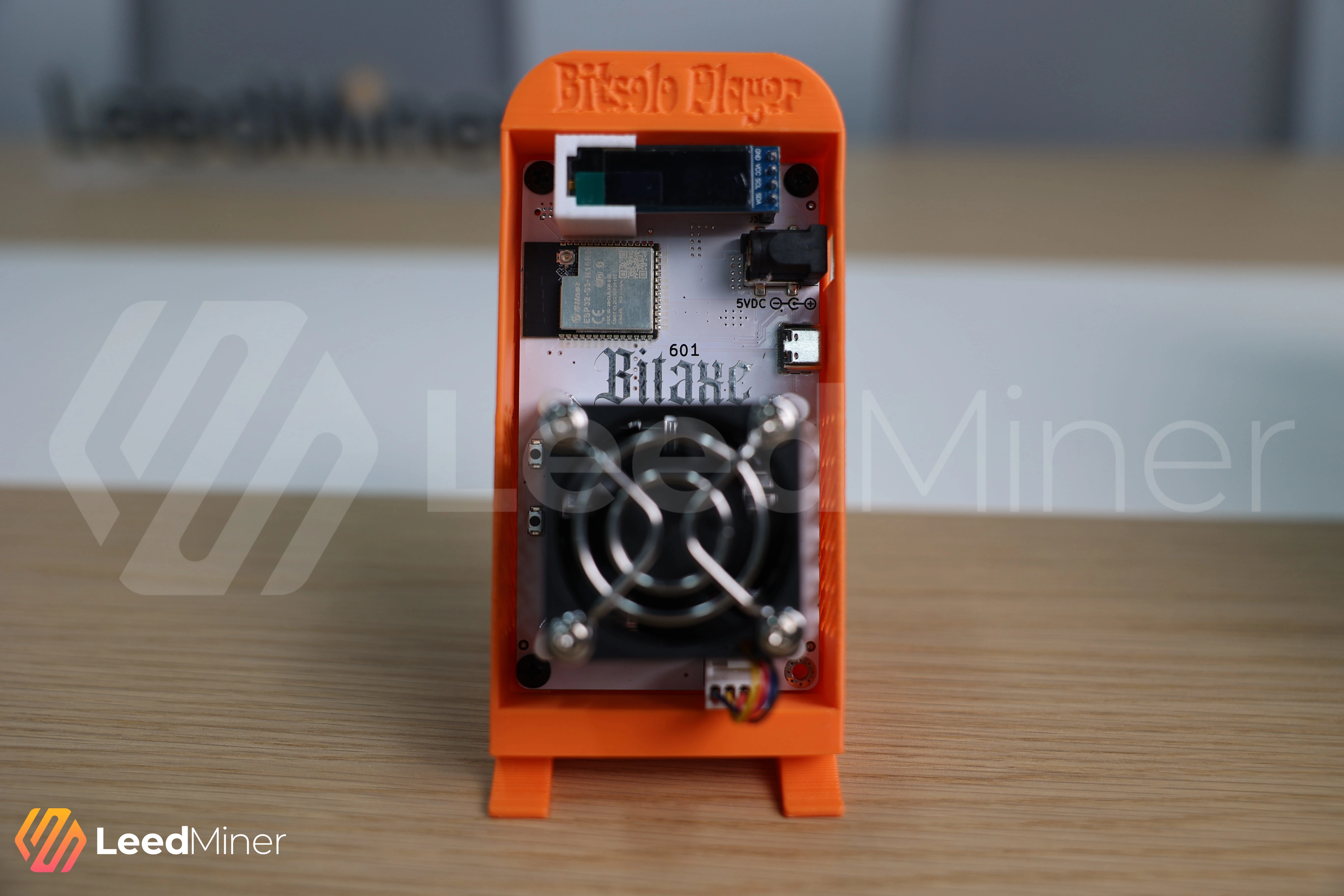

  • Bitaxe Gamma 601 miner (safely packaged with foam protection to prevent any damage during shipping)
Bitaxe Gamma 601 Main Body

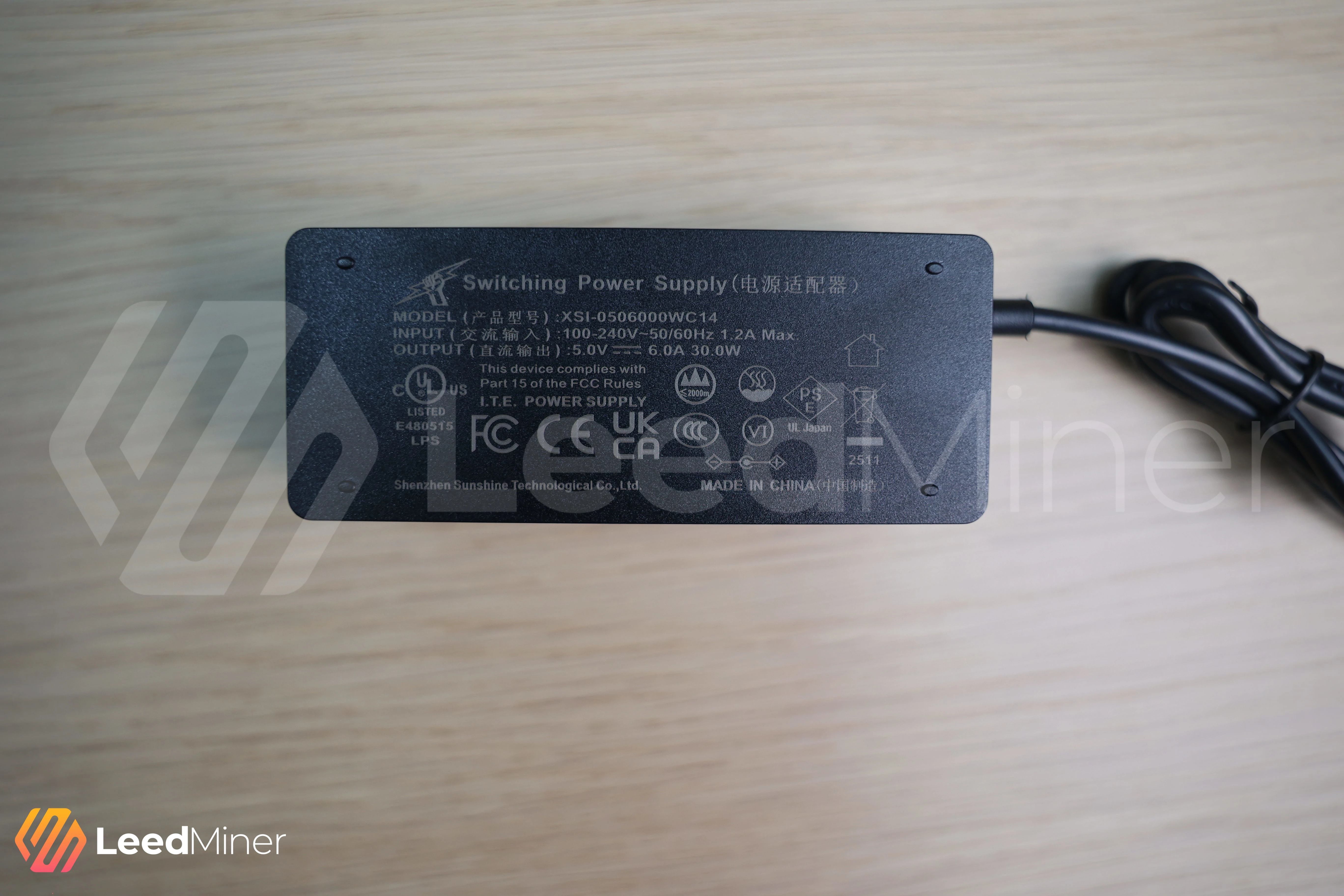

  • Dedicated power adapter (standard barrel connector, not USB-C)
Dedicated power adapter
  • Quick start guide or basic setup instruction card (in some versions)

The Bitaxe Gamma 601 is impressively compact — smaller than most routers — and weighs around 500g, making it ideal for home use on any desk or shelf. Its small size and low noise profile make it perfect for running even in quiet spaces.

Before powering on, make sure:

  • There is no visible damage to the device or power adapter
  • The screen is intact and the ports are clean
  • You’re using a 2.4GHz Wi-Fi network, as the miner does not support 5GHz

Once you've verified the contents, you're ready to move on to the setup process and start mining.

Step-by-Step Installation and Setup for Bitaxe Gamma 601

The Bitaxe Gamma 601 was designed with simplicity in mind. Setting it up requires no coding experience — just a power outlet, a Wi-Fi network, and a browser on your phone or computer.

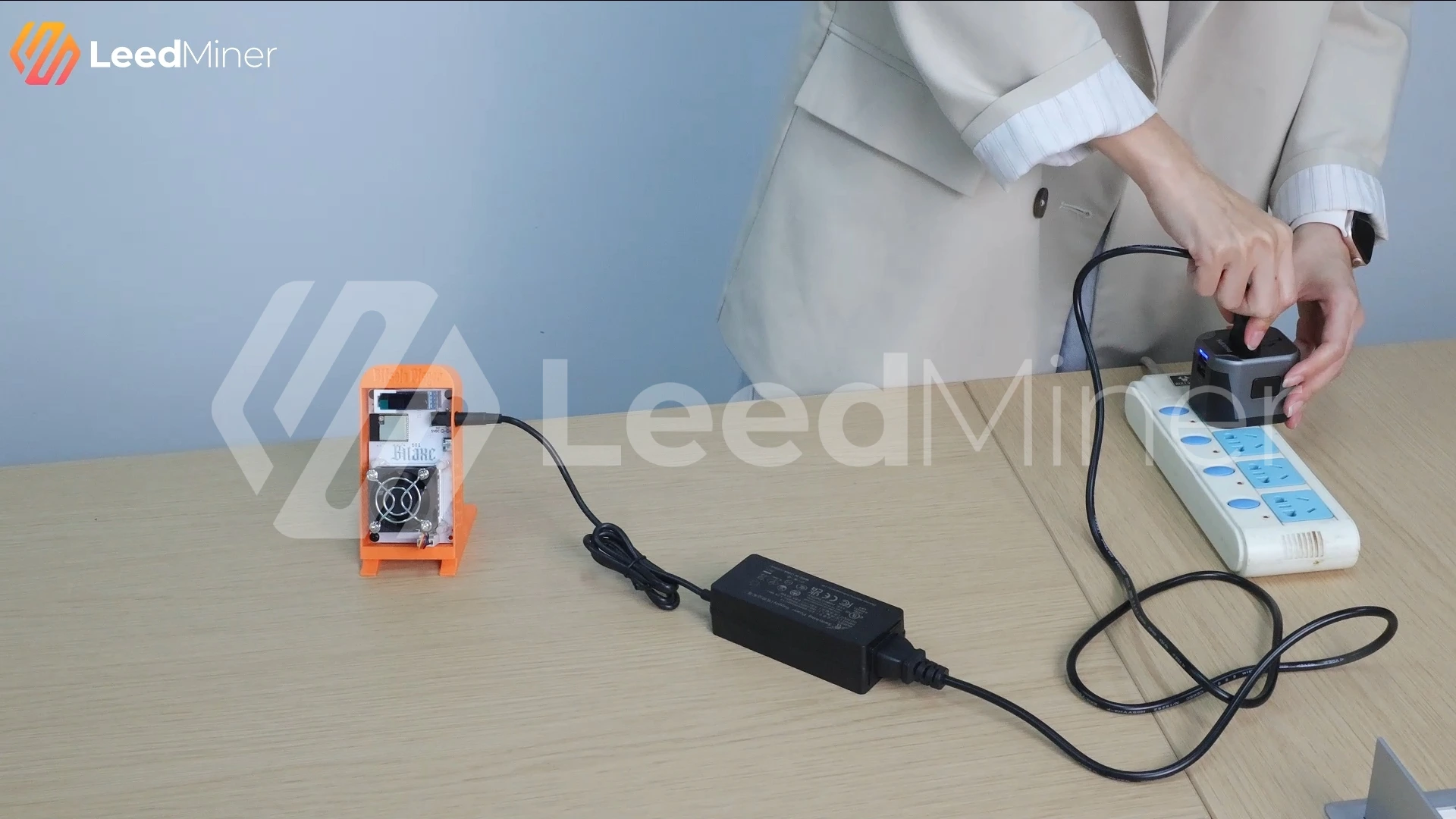

1.Plug in the Power

Use the included dedicated power adapter to power the miner. Once connected, the device will boot up automatically.

⚠️ Note: The USB-C port is not for power — it’s used for firmware flashing or development purposes only.

Plug in the Power

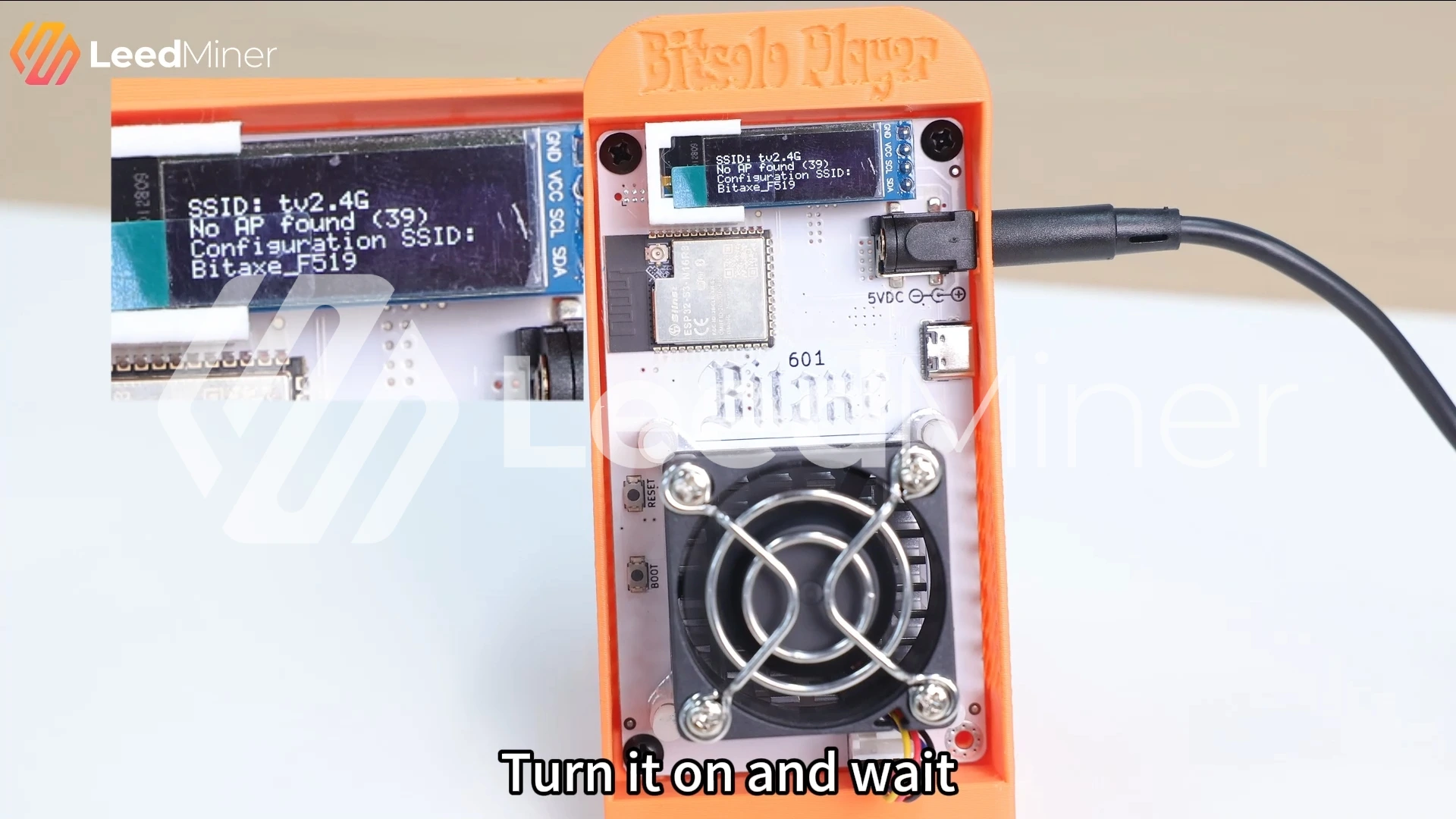

2.Wait for Startup

After powering on, the built-in screen will light up. Within a few seconds, you’ll see a Wi-Fi network called something like Bitaxe_XXXX.

Wait for Startup

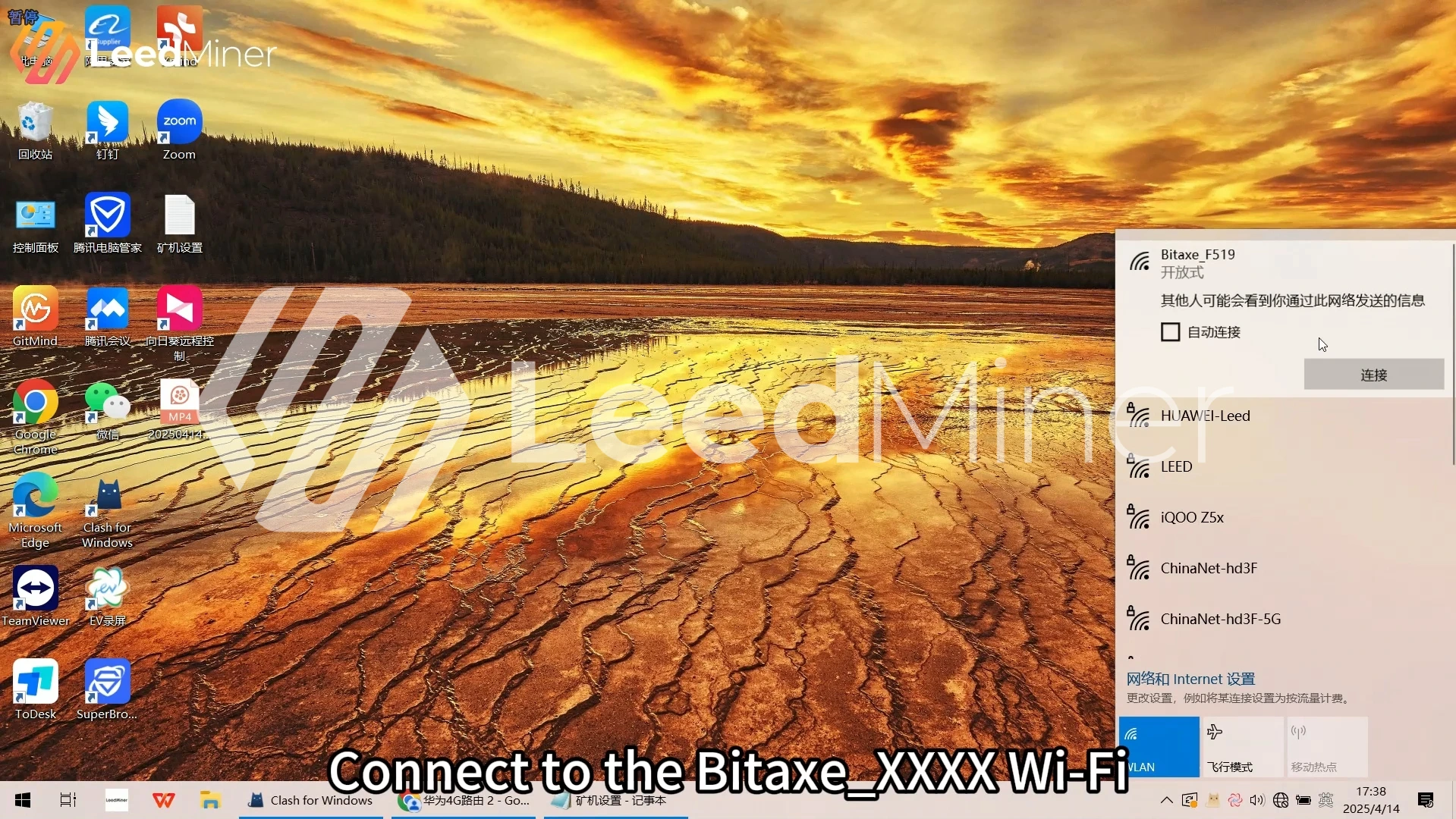

3.Connect to the Bitaxe Wi-Fi

On your phone or computer, connect to the Bitaxe_XXXX Wi-Fi network.

Once connected, your device may automatically redirect to a setup page. If it doesn’t, open a browser and visit: http://msftconnecttest.com

Connect to the Bitaxe Wi-Fi

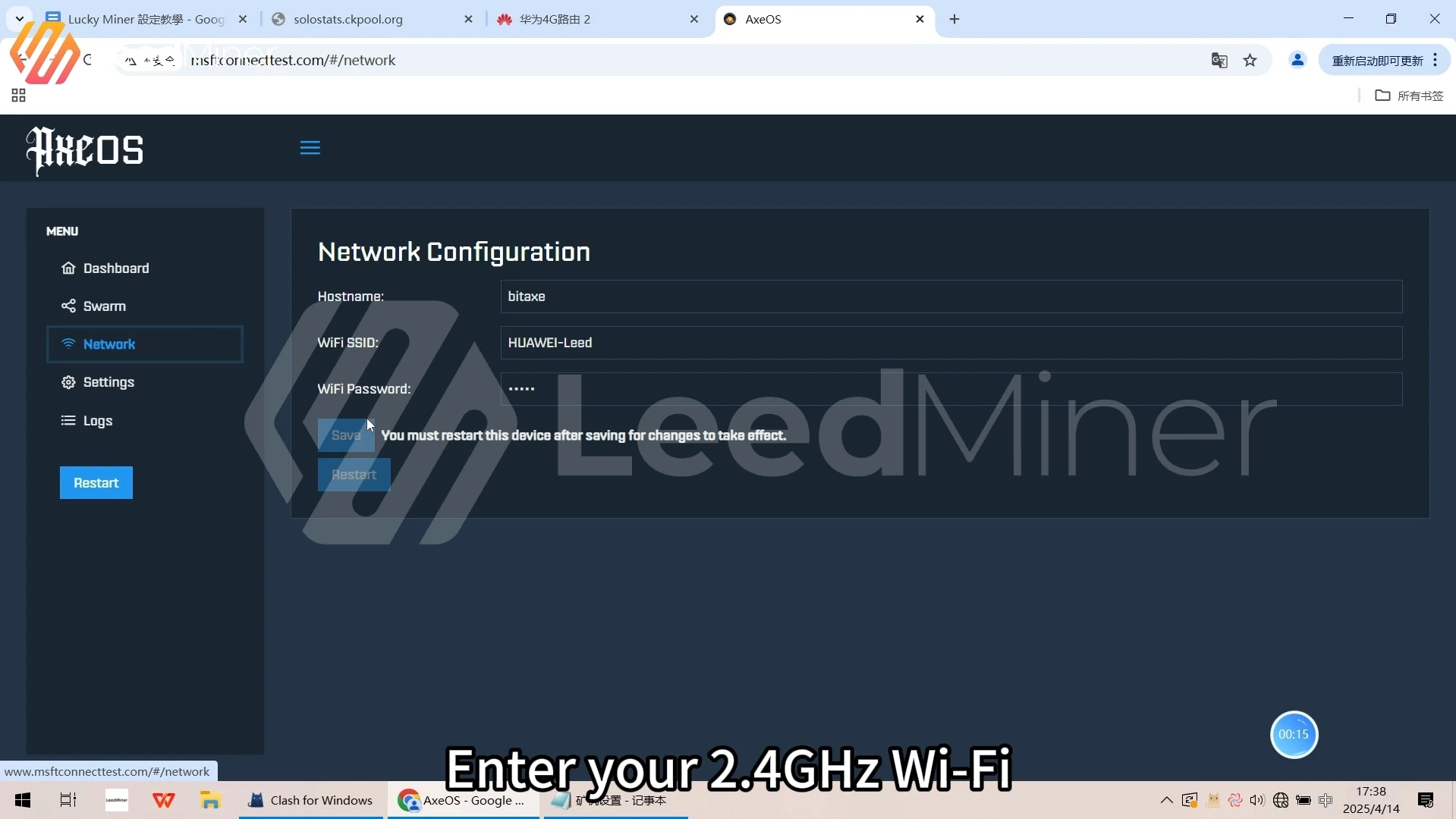

4.Enter Your Home Wi-Fi Info

On the setup page:

  • Enter your 2.4GHz Wi-Fi SSID (Wi-Fi name)
  • Enter your Wi-Fi password
  • Click “Connect” or “Save”

The Bitaxe will then reboot and connect to your home network.

Enter Your Home Wi-Fi Info

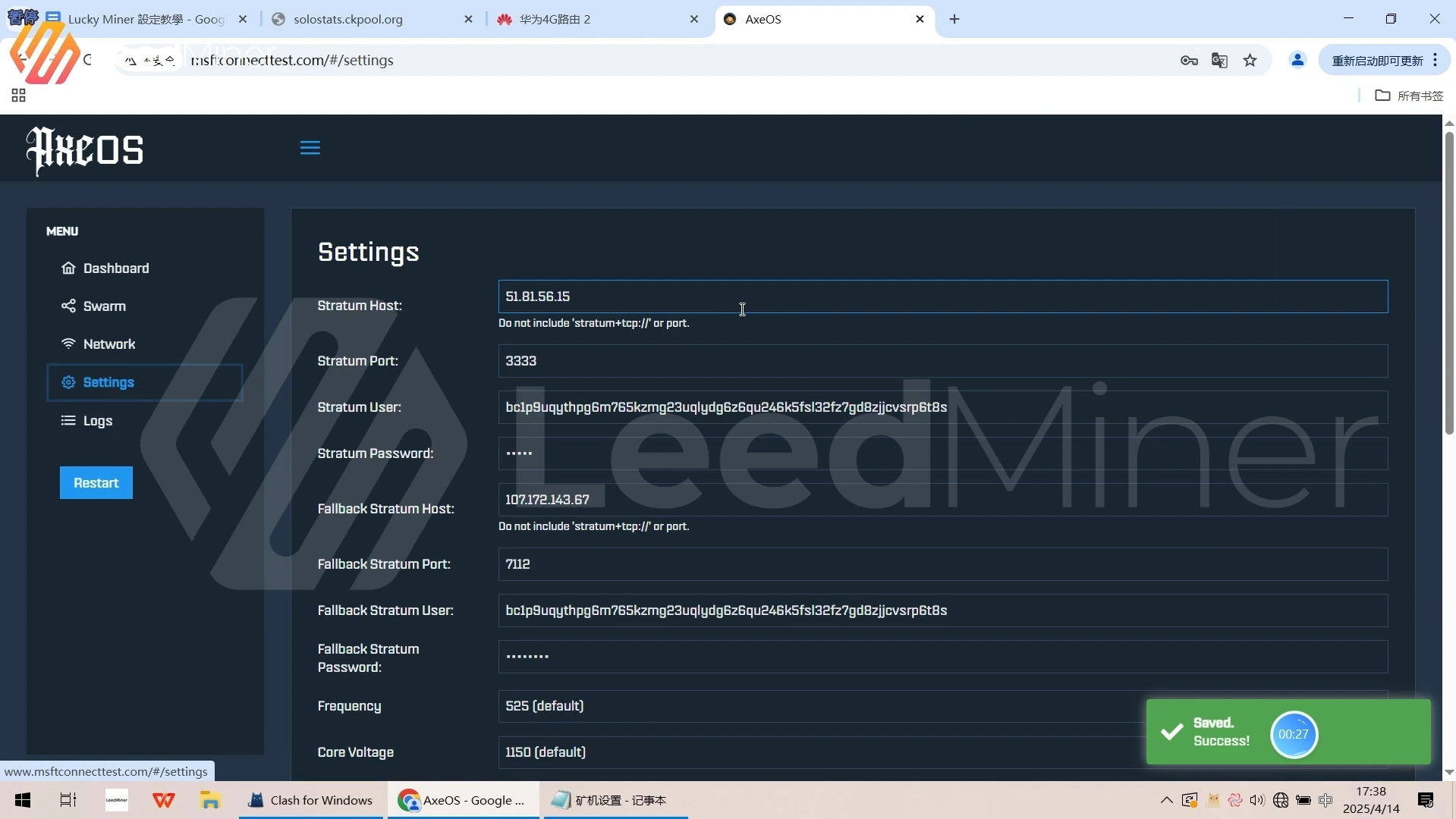

5.Configure Mining Pool Info

After connecting to your home Wi-Fi, the screen will display a local IP address, such as 192.168.1.128.

Open a browser and enter that IP address to access the Bitaxe web control panel.

There, you’ll need to:

  1. Enter your mining pool’s Stratum URL.
  2. Enter your mining username (usually your Bitcoin wallet address)

Click Save — and your Bitaxe will begin mining.

Configure Mining Pool Info

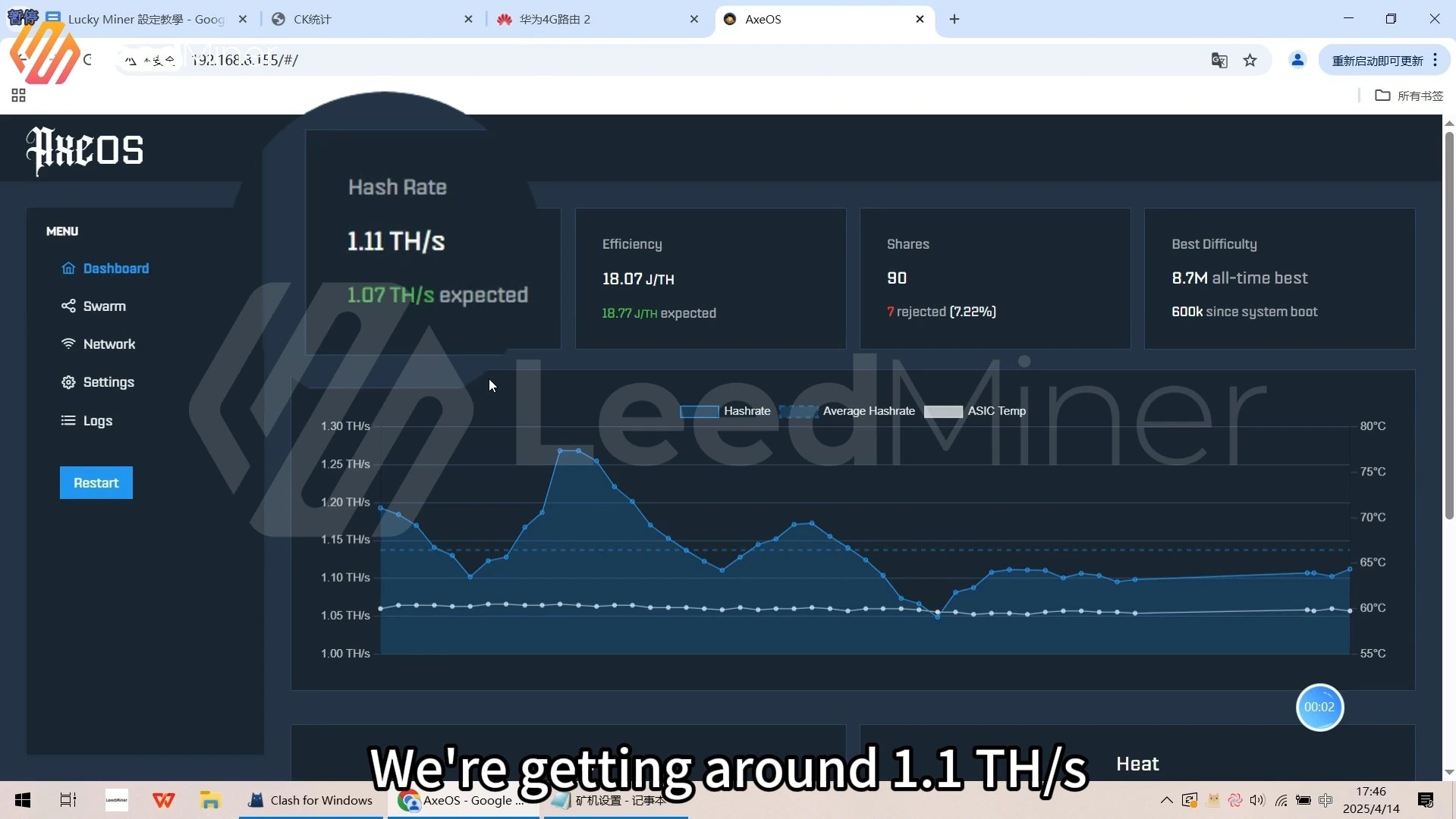

Final Check: Confirm It's Working

You can monitor live stats such as hashrate (1.1 TH/s), temperature, and voltage either on the screen or in the web interface.

If you see shares being submitted — congratulations, you’re officially mining!

Confirm Its Working

Bonus Tips (Optional Tweaks)

  • Use the control panel to adjust frequency or voltage for overclocking or underclocking.
  • Easily update the firmware via OTA from the web panel.
  • Need to start over? Long-press the onboard button to reset to factory settings.

And that’s it — the full Bitaxe setup process takes just 5–10 minutes.
Whether you’re a Bitcoin beginner or a DIY hardware enthusiast, the Bitaxe Gamma 601 offers a fun and accessible way to explore mining on your own terms.

No Reading Needed : Bitaxe Gamma 601 Setup Video

FAQs on How to Set Up Bitaxe Gamma 601

Can I use a 5GHz Wi-Fi network to connect my Bitaxe Gamma 601?

No. The Bitaxe Gamma 601 only supports 2.4GHz Wi-Fi networks. Make sure your router has 2.4GHz enabled, or use a dual-band setup to ensure compatibility.

The USB-C port is not for power. It is used for firmware flashing, debugging, or development purposes. To power the device, always use the included barrel-style power adapter.

Yes! The Bitaxe Gamma 601 is ideal for solo mining experiments. You can connect to solo mining pools like solo.ckpool.org. While it’s not guaranteed to find a block, the setup is simple, and it gives you a chance to strike it big — no middlemen, no pool shares.
